   Head Temperature Transmitters:
  Head Temperature Transmitters>> TMT190B
Name:      Head Temperature Transmitter TMT190B
Type:      TMT190B
Specifications:     · e-HART communication
   ·  4 to 20mA output
    · Wide voltage supply range
    · Expanded resistance input (max 2KΩ)
    · Expanded voltage input (max 2KmV)


  Performance:
  * Internal cold junction
* Fault signal on sensor break or short circuit
* 2-wire technology, 4 to 20mA analogue output
* High accuracy in total ambient temperature range
* Customer specific measurement range setting or expanded SETUP

  Areas of application:
  * 4 to 20mA output
* 2-wire technology

  Technical data:
  * Output: 4 to 20mA
* Supply voltage:  7.5 to 45VDC
* Input:  RTD, TC, Ohm, mV
* Cold junction:  Internal
* Influence of ambient:  Negligible
* Load influence: Negligible
* Power supply influence:  Negligible
* Resolution:  0.3uA
* Installation:  sensor head Form B
* Operation:  PC-programmable

  Dimension :

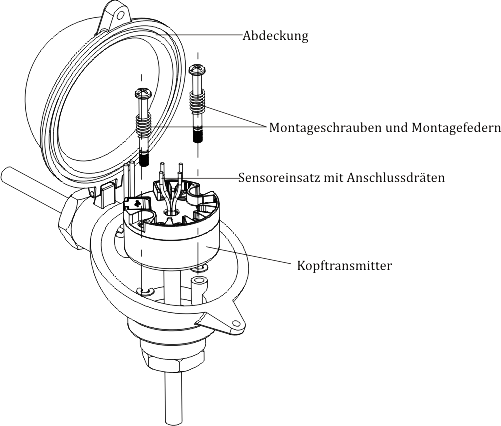

  Install:
